Description
The YS14 4K + 1080P Dual Channel Dash Cam is a professional front and rear car camera designed for distributors, wholesalers, fleet operators, Amazon sellers and private-label brands.
Equipped with a GC4653 front image sensor and GC2083 rear camera sensor, the YS14 delivers 4K Ultra HD front recording and 1080P rear recording, providing comprehensive video coverage of the road ahead and behind the vehicle.
The dash cam features a 3.16-inch full-view IPS display, built-in 5.8G Wi-Fi, seamless recording, loop recording and optional GPS. With support for up to 256GB Micro SD storage, it is suitable for everyday drivers as well as commercial vehicle applications.
For B2B customers, Yeshi Tech supports wholesale & branding customization, private labeling and wholesale orders, making the YS14 a flexible solution for dash cam brands and distributors.

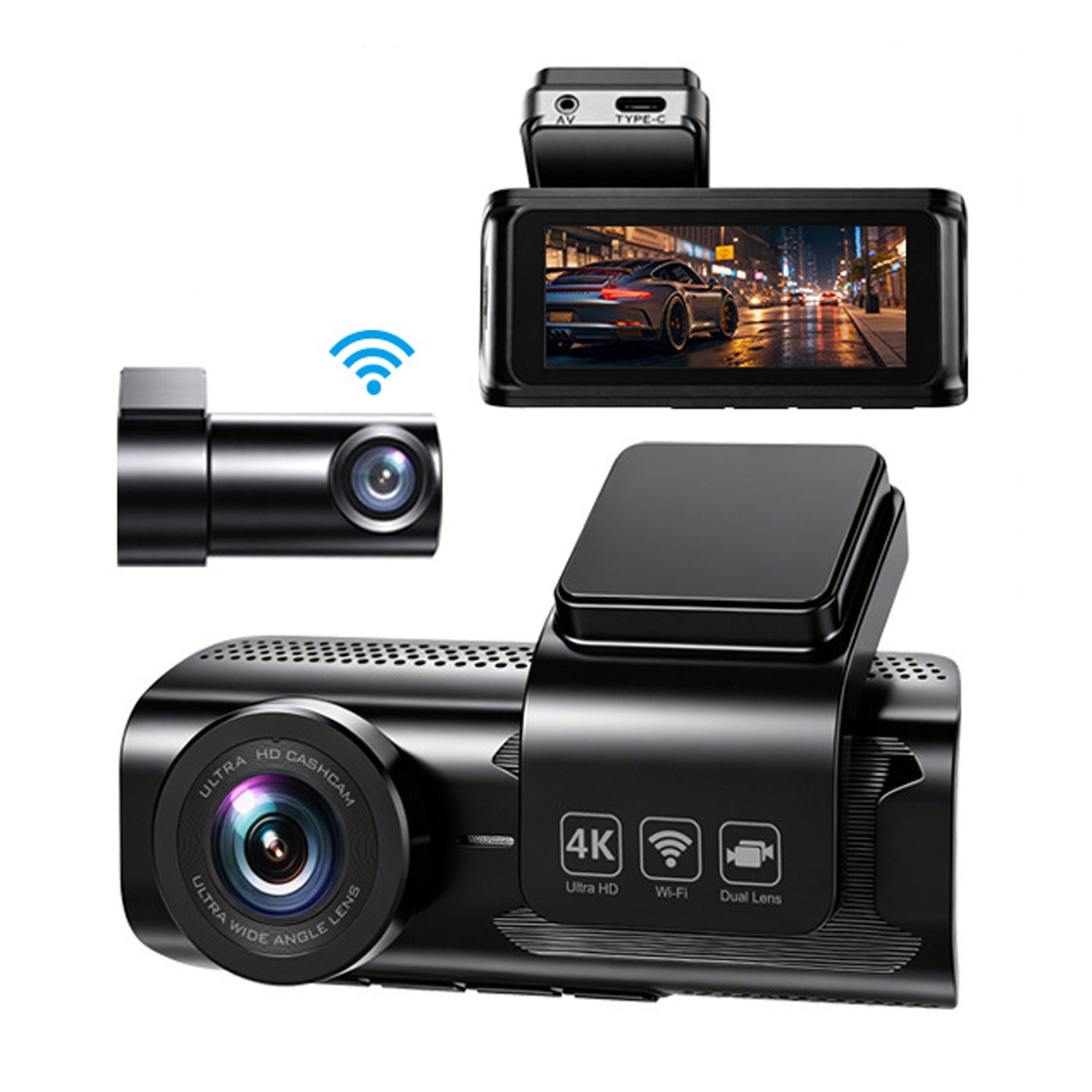

4K Front + 1080P Rear Recording
The YS14 provides dual-channel recording with 4K 3840 × 2160 front video and 1080P 1920 × 1080 rear video.
The high-resolution front camera captures detailed road footage, while the rear camera provides additional coverage behind the vehicle. Together, the two cameras help reduce blind spots and provide more complete driving evidence.
GC4653 Image Sensor
The front camera uses the GC4653 image sensor combined with an HD wide-angle lens, delivering high-resolution video for daily driving and vehicle surveillance applications.
The rear camera uses a GC2083 sensor, providing reliable 1080P rear recording.
3.16-Inch Full IPS Display
The built-in 3.16-inch IPS screen features an 820 × 320 resolution and a full-view display design.
The screen allows drivers to preview the cameras, adjust settings and review recorded footage directly from the device.
Built-in Wi-Fi Connectivity
The YS14 supports built-in 5.8G Wi-Fi, allowing convenient wireless connectivity with compatible mobile devices.
Users can access and manage recorded video files without repeatedly removing the Micro SD card.
Note: If the hardware specification is actually 5GHz Wi-Fi, the website specification should be written as 5GHz Wi-Fi rather than 5.8G Wi-Fi.
Optional GPS
The YS14 supports optional built-in GPS.
For customers requiring GPS functionality, location information can be integrated into the driving-recording solution, making the product suitable for applications where route and vehicle location data are important.
Seamless Video Recording
The seamless recording function helps maintain continuous video capture without noticeable gaps between video files.
This is particularly useful when the dash cam is being used as a continuous driving recorder where uninterrupted footage is important.
Flexible Loop Recording
Users can select different loop recording intervals according to their requirements:
- Off
- 1 minute
- 3 minutes
- 5 minutes
- 10 minutes
When the storage card becomes full, the dash cam can continuously record according to the selected loop-recording setting.
Up to 256GB Micro SD Storage
The YS14 supports Micro SD cards from 4GB to 256GB, with U3 cards recommended for high-resolution video recording.
The large storage capacity provides more space for 4K front and 1080P rear video files.
Parking Monitoring
The dash cam supports parking monitoring, which can provide additional vehicle surveillance while parked.
The parking monitoring function is set to OFF by default and can be enabled according to the user’s requirements and appropriate power configuration.
Reliable Allwinner V851S3 Platform
The YS14 is powered by the Allwinner V851S3 chipset, providing a stable hardware platform for dual-channel high-resolution video recording.
The system supports H.264 video encoding and MOV/AVI video formats for broad compatibility.
Key Features
- 4K Ultra HD front recording
- 1080P rear recording
- GC4653 front image sensor
- GC2083 rear image sensor
- 3.16-inch IPS display
- 820 × 320 screen resolution
- Built-in Wi-Fi
- Optional GPS
- Seamless video recording
- Loop recording
- Parking monitoring
- Up to 256GB Micro SD card
- U3 storage card support
- H.264 video encoding
- 30 FPS recording
- Built-in microphone and speaker
- wholesale & branding customization available
Technical Specifications
| Item | Specification |
|---|---|
| Model | YS14 |
| Main Chipset | Allwinner V851S3 |
| Front Camera Sensor | GC4653 |
| Rear Camera Sensor | GC2083 |
| Front Resolution | 4K (3840 × 2160) |
| Rear Resolution | 1080P (1920 × 1080) |
| Lens | HD Filter Wide-Angle Lens |
| Recording Channel | Dual Channel |
| Screen Size | 3.16 Inch |
| Screen Type | Full-View IPS |
| Screen Resolution | 820 × 320 |
| Video Format | H.264 (MOV/AVI) |
| Photo Format | JPG |
| Auto Recording | Supported |
| Loop Recording | Off / 1 / 3 / 5 / 10 Minutes |
| Voice Recording | On / Off |
| Parking Monitoring | On / Off |
| GPS | Built-in GPS, Optional |
| Wi-Fi | Built-in Wi-Fi |
| Storage | Micro SD 4GB–256GB U3 |
| Maximum Storage | 256GB |
| Seamless Recording | Supported |
| Microphone | Built-in |
| Speaker | Supported |

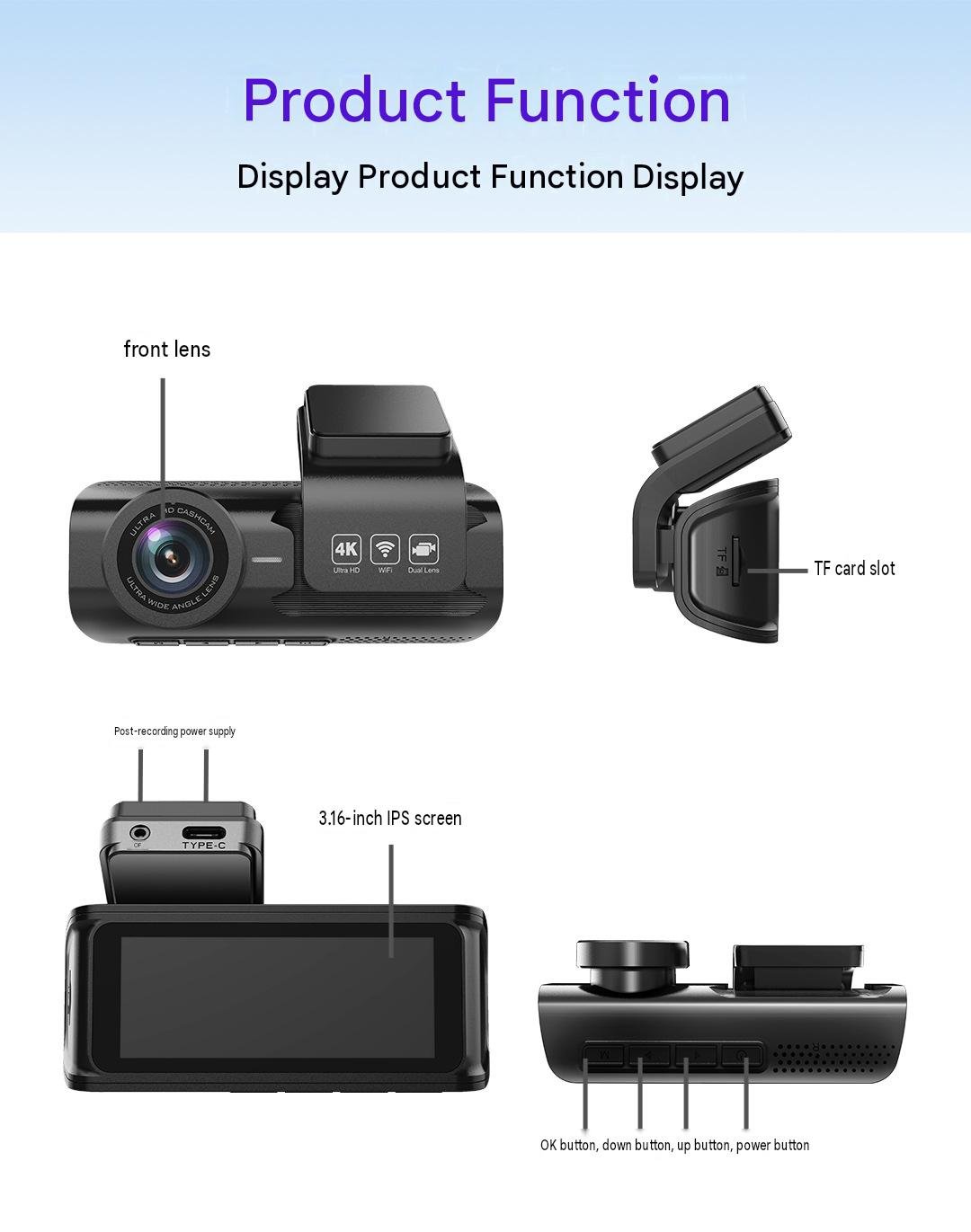

| Control Buttons | Power / Menu / Up / Down / OK |
wholesale & branding Dash Cam Supplier
Yeshi Tech provides wholesale dash cam supply with logo & boot-animation branding for international distributors, wholesalers, fleet solution providers, Amazon sellers and private-label brands.
The YS14 can be used as a ready-to-market product or customized according to your brand and market requirements.
wholesale & branding services can include:
- Custom brand logo
- Private-label packaging
- Custom startup logo
- User manual customization
- Product accessories
- Firmware customization
- Packaging design
- Bulk wholesale orders
Looking for a reliable 4K dash cam manufacturer or wholesale supplier? Contact Yeshi Tech for pricing, MOQ, samples and wholesale & branding solutions.
Frequently Asked Questions
What resolution does the YS14 record at?
The front camera records 4K and the rear camera records 1080P at the same time. Footage is written in a seamless loop so there are no gaps between clips.
Is GPS standard on the YS14?
GPS is optional on the YS14. It can be added at the factory for orders that need speed and route data embedded in the video.
What is the benefit of 5.8G Wi-Fi over 2.4G?
5.8G Wi-Fi transfers 4K clips to a phone far faster than 2.4G, which matters when drivers need to pull evidence footage on the spot.
